MAX315 A TIG 325mm Steel Pipe Welding Machine

  • 1
  • 2

Brand Name : Hyzont

Model Number : OTH-50

Certification : CCC

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100Set a Month

Delivery Time : 7 days

Packaging Details : Wood Case

Name : Orbital Welding Machine

Model : OTH-50

Application : Pipe TIG/GTAW Automatic Welding

Input Power : 380V-440V

Out Put : MAX315 A

Type of Weld : TIG with wire Feeding

Pipe OD : Φ50-168mm

Welding Head Weight : 8Kg

Contact Now

150 - 325mm Steel Pipe welding machine TIG welding for nuclear power plan construction

Application:

    Tube dia Range:Φ150-325mm



    This Automatic Tube Welding Machine includes OBT-400 TIG welding power source  and OTH-50 orbital welding head , which is Suitable for medium wall thickness carbon steel, stainless steel material pipe welding. It is designed as a compact structure and easy to use at work site  with good weld surface and fast speed.

Features :

  • Automatic all position TIG pipe to pipe welding with/without wire feeding
  • Compact structure design, stable rotation with small rotating inertia
  • Oscillation, multi-passes welding process
  • Suitable for connection of tube to tube, tube to flange, tube to elbow, tube to valve
  • Water circuit cooling, achieving long time working
  • This machine  is modular in design, compact in design and compact in structure.
  • The main components are aluminum structure and stepless adjustable clamp to fix the pipe diameter.
  • Gapless gear transmission structure design with automatic AVC

Specification

Model MWA-400A
Welding source Panasonic YC-400TX
Power source type Inverter
Welding Current 5-400A
Duty Cycle 400A/60%;250A/95% ;244A 100 %
Input Voltage AC380V ± 10 % 50/ 60 Hz
Total Power 8.3KVA
Cooling Build-in Water Cooling System

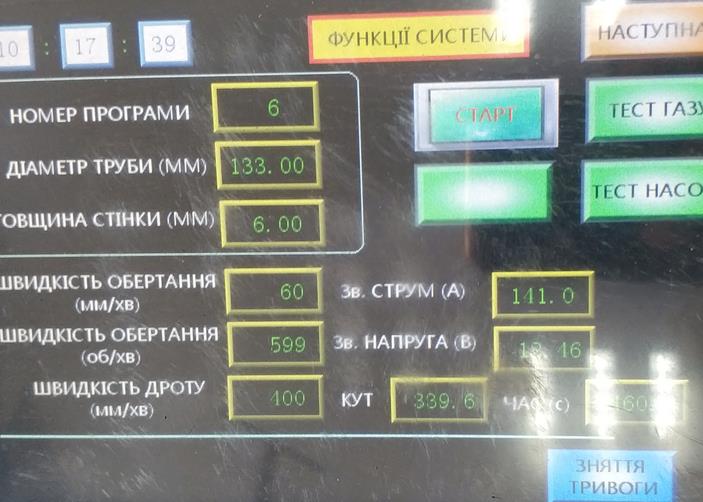

Display 7" touch screen
Programs Storage 80
Insulation Grade F
Protection Class IP21
Weight 135KG
Dimension 740*520*910
Control Function

Argon Gas Control

Welding Continuous Welding Current and Plus Current Control

Welding Head Rotation Control

Wire Feeding Control

Auto AVC control with on and off function for manual adjustments



Name Key parts Brand Mark
Welding Power Source Welding Power Source PANASONIC Japan
PLC MINISUBISHI Japan
Touch screen Colorful10” TAIWAN
electrical element OMRON JAPAN
Cable QIFAN CHINA
Welding Head Motor FAULHABER Germany
Connection Brass connector
Welding head body Machining Aluminum





Detailed Pictures

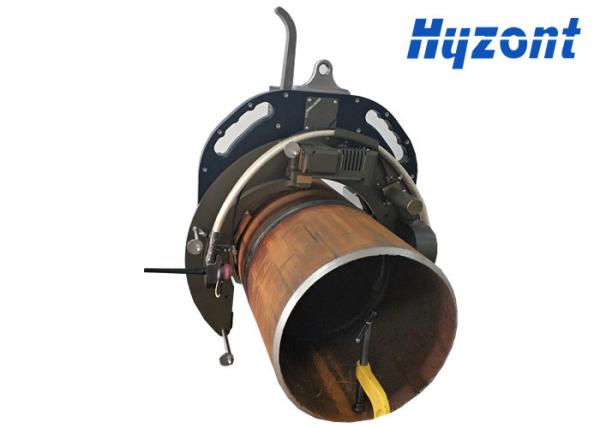

MAX315 A TIG 325mm Steel Pipe Welding Machine

MAX315 A TIG 325mm Steel Pipe Welding Machine
