Home > Orbital Welding Machine >

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

Product Categories

Hyzont(Shanghai) Industrial Technologies Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD1276mm
Brand: Hyzont
Price: 1 USD

Brand Name : Hyzont

Model Number : MWF-40/80/120

Certification : CCC/CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets a Month

Delivery Time : 5-7 days

Packaging Details : Flight case

Name : Automatic Fusion TIG Orbital Welding Machine

Brand : Hyzont

Model : MWF-40/80/120

Weld Type : Auto GTAW

Applications : Carbon Steel or Stainless Steel Tube butt welding

Weld Tube OD : 12-76mm

Weld Tube Thickness : 1-3mm

Cable Length : 6m or Customized

Net Weight : 2-6Kg

Warranty : 12months

Contact Now

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

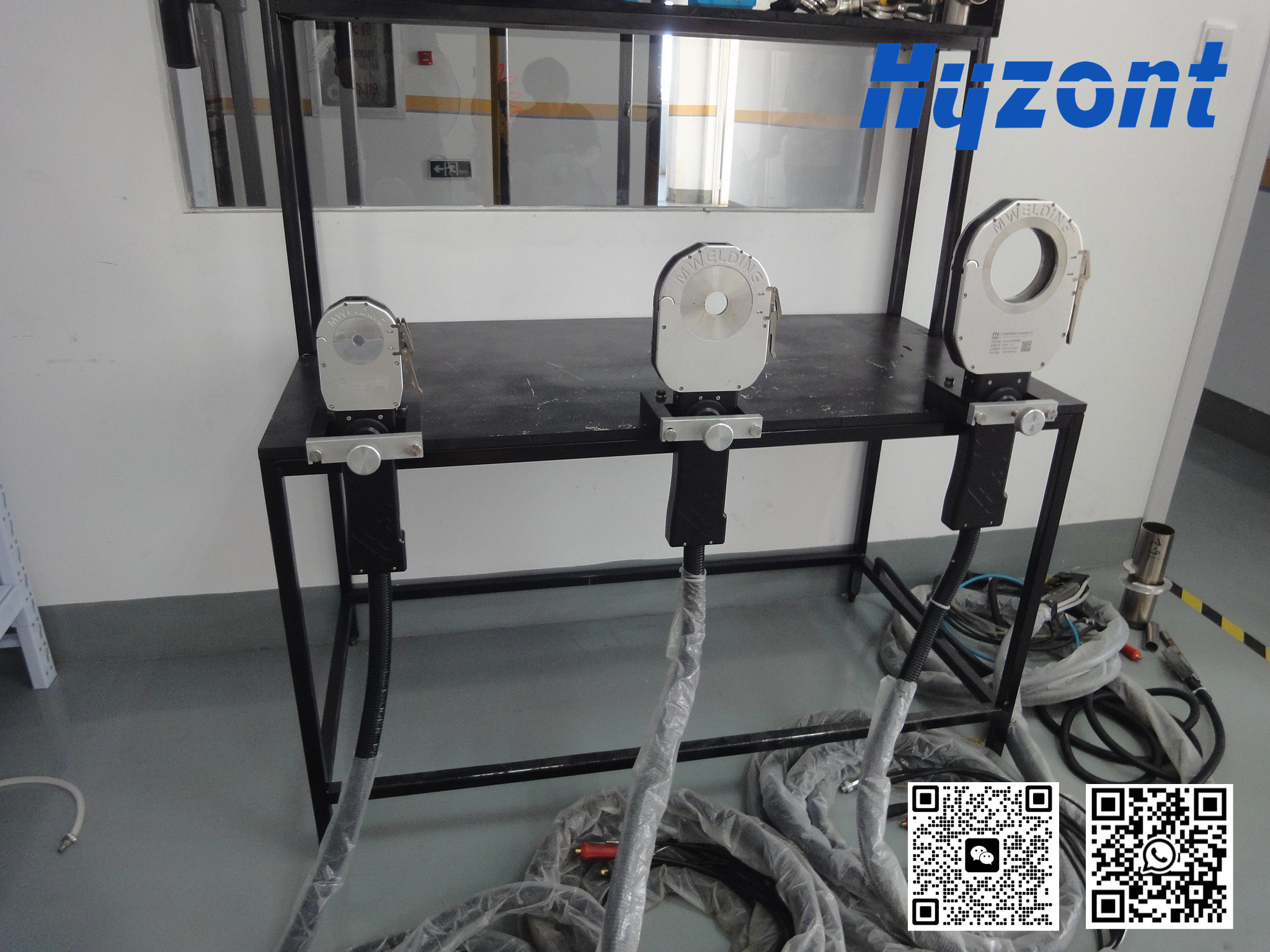

Features and advantage of Closed Weld Heads

Features and advantage of Closed Weld Heads
All Key Parts are imported insulation and heat-resisting materials
Compact and handy closed Welding Head which made by aluminums alloy,light and durable
Germany Original Rotator Motor, Welding process stable and reliable
Adjustable parameter during welding process for some special welding requirements
Built-in various welding head parameters for accurate motion control
Water circuit cooling design for long time working
Unique design of inner orientation gas circuit
Quick-install Clamps, easy to use

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

Model	MWF-40	MWF-80	MWF-120
Material	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting	Straight tube, Pipe flange, Elbow butt joint;
Welding Process	TIG/GTAW (no wire feeding)
Tube OD(mm/inch)	6~38.1mm 1/4"~1 1/2"	19.05~76.2mm 3/4"~3"	38.1~114.3mm 1 1/2"~4 1/2"
Tube Wall Thickness(mm)	≤3mm	≤3mm	≤3mm
Tungsten OD(mm)	1.6	1.6-2.4	1.6-2.4
Rotating	360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm)	0.3~6	0.2~4.5	0.15~1.9
Protective Gas	Argon	Argon	Argon
Cooling	Water	Water	Water
Cooling Flow(ml/min)	1000ml/min	1000ml/min	1000ml/min
Cable Length	6m	6m	6m
Main Dimension(mm)
Weight(kg)	2kg	3kg	6kg
Dimension(mm)	37738100	43638175	49723057

Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm
