Pressure Vessel Building CNC Laser Tube Cutter , 1250mm CNC Plasma Pipe Cutting Machine

Name: Pressure Vessel Building CNC Laser Tube Cutter 1250mm CNC Plasma Pipe Cutting Machine
Brand: TAYOR
Price: 1 USD

Brand Name : TAYOR

Model Number : CNCXG1250-V

Certification : CE

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 Set a Month

Delivery Time : 30 days after payment

Packaging Details : Wooden Case

Name : CNC Pipe Profile Plasma Cutting Machine

Model : CNCXG-1250V

Application : CNC Pipe Profile Plasma Cutting for Steel Structure or Pressure vessel Cutting

Pipe OD : 300-1200mm

Wall Thickness : 1-32mm Carbon Steel (Plasma Cutting)

Pipe Length : 12000mm

Controller : 5 axis Window Based CNC controller

Plasma Power Source Model : 200

Contact Now

CNC Roller bed tube cutting machine 1250 mm diameter Plasma Pipe cutting machine

Model: CNCXG1250-V

Applications:

This machine has been designed as automatic pipe profile plasma cutting machine to take user more efficient who facing complicated cut job of pipe truss building.

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

Pressure Vessel Building

Chemical Pipeline fabricating

Oil pipeline manufacturing

Steel Structure pipe cutting

Truss hole cutting

Features

Canada professional pipe optimization CNC system, with AutoCAD version of the engineering design can be directly generated G code.

Support tube splitting /image /left and right replacement and other pipe optimization function.

Support TEKLA software seamless link, generate CNC processing code.

Adopt the shaft lifting structure, main feature is the center of the chuck is floating adjustable, adopt tube not move while chuck floating method, highly improve large diameter cutting.

Roller body, can automatically transport cutting pipe.

Specification

Pipe Diameter	300-1250 mm
Torch Rail length (Pipe length)	≤12000 mm
Cutting model	Flame
Plasma Cutting Thickness	1-32 mm
Plasma model	200
Flame cutting thickness	6-40 mm
Photoelectric Height Sensor	0.1 sec response speed
Control System	pipe profile cutting software
Data input	Torch Screen Data Input
Max Loading capacity	15000Kg
Pipe Chuck	3 Jaws concentric chuck
Flame Max beveling angle	±60°
Plasma Max beveling angle	±45°
Flame cutting speed	50 mm/min -800 mm/min
Plasma cutting speed	100 mm/min-4000 mm/min
Moving Error	≤0.2 mm /1000 mm
Turning Angle Error	≤1° per 180°
Pipe Rotate speed	0-10000 mm/min

Detailed Pictures

Pressure Vessel Building CNC Laser Tube Cutter , 1250mm CNC Plasma Pipe Cutting Machine

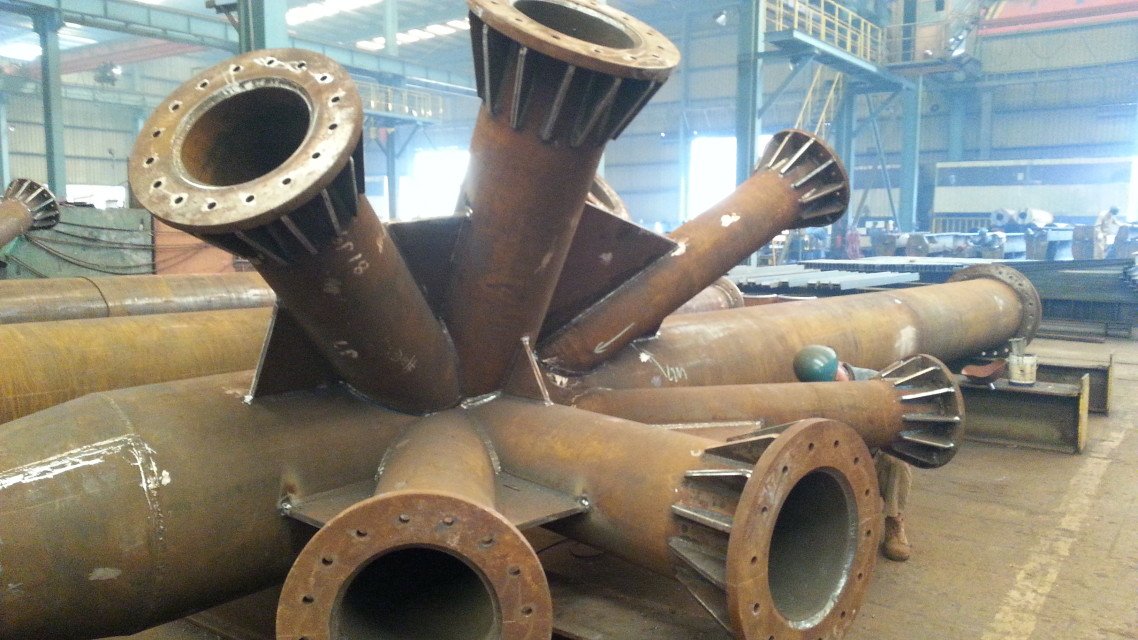

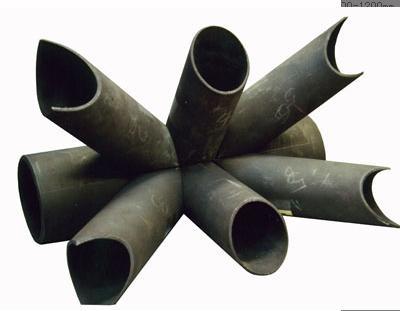

Finish Job of CNC pipe profile cutting machine

Pressure Vessel Building CNC Laser Tube Cutter , 1250mm CNC Plasma Pipe Cutting Machine

5 axis CNC Pipe Profile Cutting Machine

Order information

Order Code	CNCXG1000-V
Packing	Wooden Case and Pallet
Packing Size	2200 x 5200 x 2000 mm
Packing Weight	5000Kg
Delivery Time	30 Days after payment
