Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type Xpr300 Hypertherm

Name: Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type Xpr300 Hypertherm
Brand: TAYOR
Price: 1 USD

Buy cheap Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type Xpr300 Hypertherm product

Brand Name : TAYOR

Model Number : CNCSG4000

Certification : CCC

Place of Origin : China

Name : CNC Plasma Cutter

Model : CNCSG4000

Cutting area : 3X8m

Cutting Thickness : 6-120mm

Plasma Cutting Thicness : 1-40mm

Power supply : 220-440V

Plasma Model : XPR300 Hypertherm

Contact Now

Technical Specification

1 Brand: TAYOR

2 Model: CNCSG3000

3 Specification

NO	Descriptions	Specification
1	Track Width (mm)	3000
	Rail length (mm)	8000
	Effective Cutting Area(mm)	2000x6000
	Drive	Y axis Panasonic AC servo motor *2set
		X axis Panasonic AC servo motor *1set
	Max traveling speed	12000 mm/min
2	Torch Moving Station	Total Three 2 Sets of Moving Station Station 1: Oxy-fuel Torch Station 2: Plasma torch holder
3	Flame Torch	Cutting Thickness 5-120mm Cutting Speed:50-800m/min
4	Plasma Cutting Torch Number	Hypertherm straight torch
4	Plasma Torch Height Sensor	Hypertherm THC
5	Anti-Collision Torch Holder	TAYOR*1set
5	Plasma Cutting Speed	50-4000mm/min
6	Plasma source Model	Hypertherm XPR300/CoreTM
7	Hypertherm	Connect T
8	Nest Software	Australia FASTCAM (professional Ver.)
9	PLC	Delta* 1set Taiwan
	Electric Components	Schneider
	Cables	CE approached cable
10	Water tank Table	User self-made

4 Accuracy

Positioning Accuracy	±0.5mm/10000mm
Repeatability	≤±0.1mm
Speed setting error	≤±5%
THC accuracy	≤±0.5mm
Length of a side Error(mm)	±0.5mm
Base Point Return Error	±0.4mm
Intersection point Error	±0.5mm
Lineation forward-reverse Error	±0.2mm

5 Working Conditions

Power Supply

Temperature

Humidity

Surroundings

Machine : 220v±10%;50Hz~60Hz(Customized)

Plasma System: 3×380v±10%;50Hz~60Hz(Customized)

-10℃-50℃

<90% /No Condensation

Ventilate, No big shake

Oxy-fuel cutting gas type/Quality

Oxygen:0.5-0.8MPa

Purity: 99.5%; Flow:1.0M³/Min

Fuel Gas :Propane or Acetylene

Pressure:0.05-0.1MPa

Plasma Cutting Process gases

Plasma gas Air, O2, N2

Shield gas Air, N2

Supply gas pressure 6.2 +/- 0.7 bar (90 +/- 10 psig)

Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type Xpr300 Hypertherm

Product Tags:

cnc router plasma combo

cnc plasma cutting machine

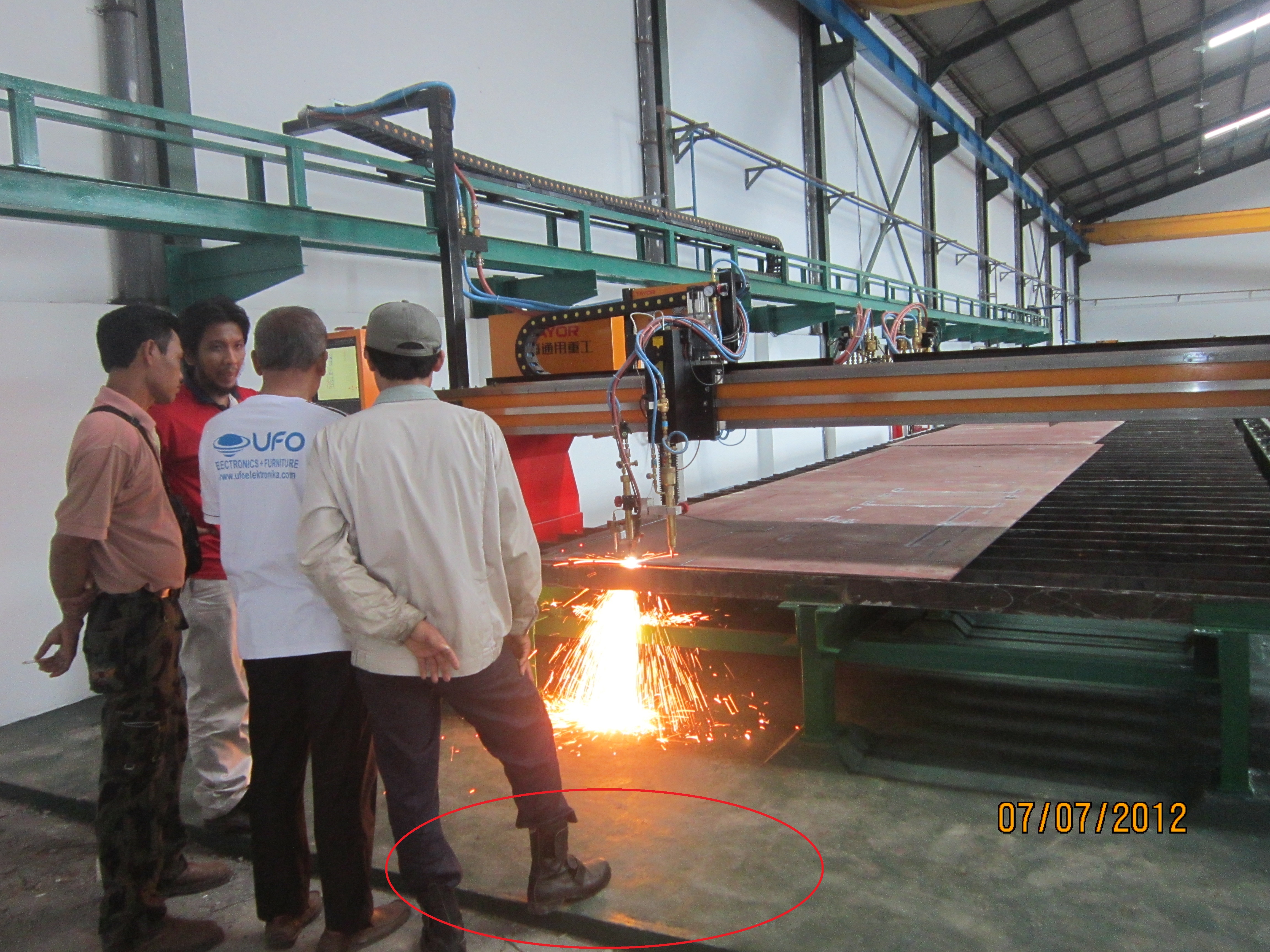

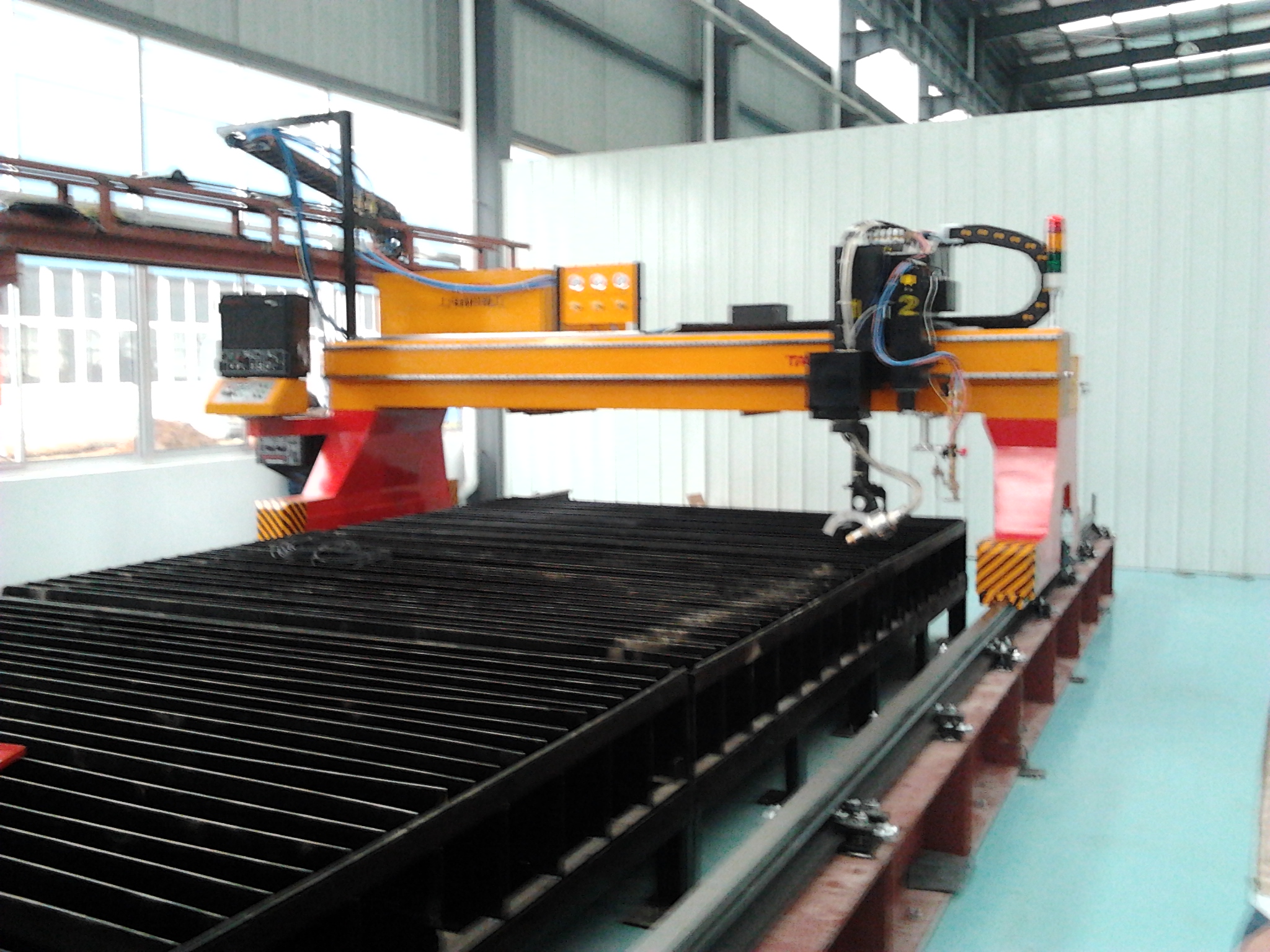

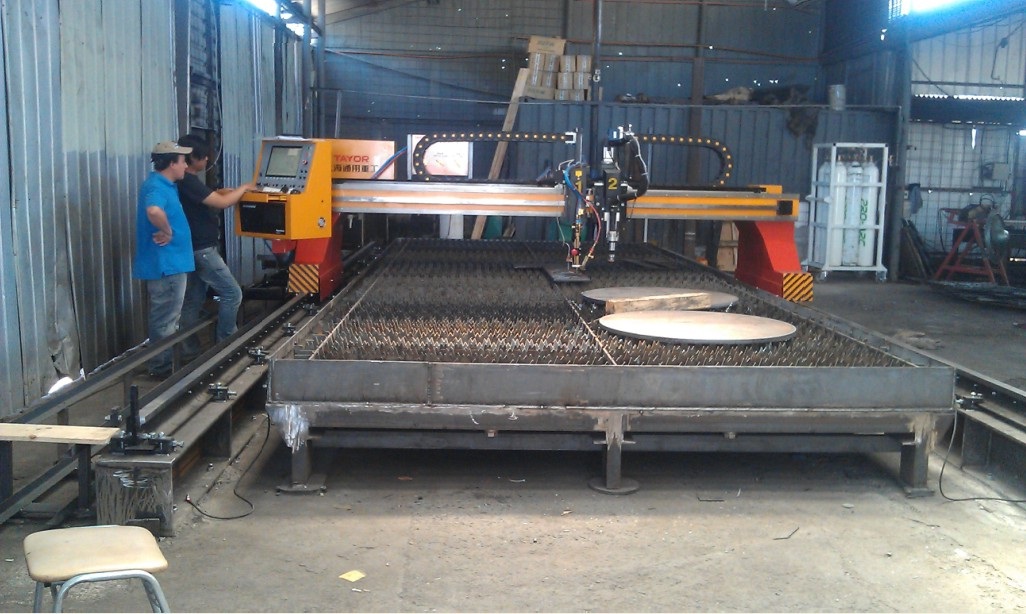

Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type Xpr300 Hypertherm Images
